BrandMicro 100
MetricN
Radius0.0150" (1/64)
CoatingUN
ProfileFull Radius
Head Width0.180"
Projection0.0500"
Tool SeriesTurning Tools
Tooth Width0.0300"
Split Length0.155"
Catalog CycleSP20
Overall Reach0.500" (1/2)
Face Dimension0.173"
Hand Directionright hand
Max Bore Depth0.500" (1/2)
Overall Length1.50" (1-1/2)
Shank Diameter0.1875" (3/16)
Packaging Width0.315
Packaging Height0.315
Packaging Length1.5
Centerline Offset0.0860"
Min Bore Diameter0.1800"
Length from Holder0.590"
Tool Product TableQuick Change - Grooving Tools - Face Grooving - Full Radius
Min Groove Diameter0.190"
Weight Unit Of MeasureLBS

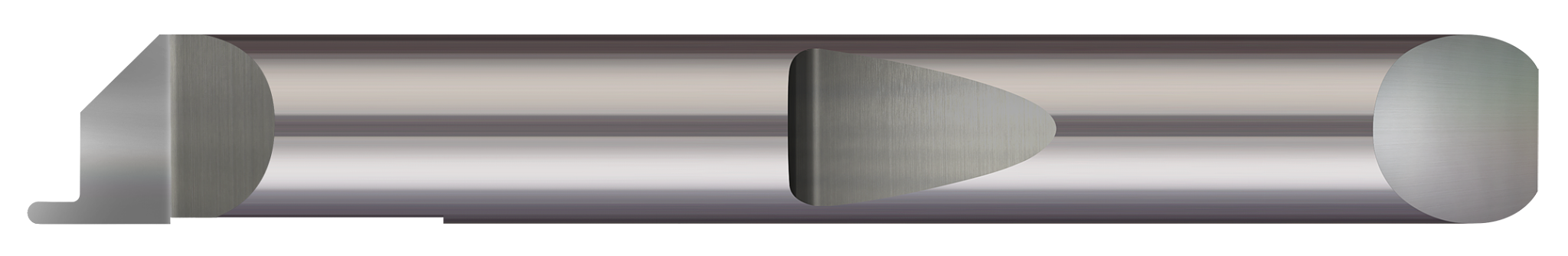

Commerce Tool DescriptionQuick Change - Right Hand - 0.1800" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0300" Tooth Width x 0.0500" Projection x 1.50" (1-1/2) OAL x 0.0150" (1/64) Radius
Tool Price Unit of MeasureUSD
